A plotter is an output device that using to make a large-scaled graphics, technical graphics, maps, engineering graphics, and blueprints of the architectural. On the other hands; the normal printers, this prints the image by plotting the small dots on the sheet. But plotter make’s the perfect precise lines and curves which make graphics perfect.
Plotters are very important tool in the engineering fields, architectures, and wide use in the construction. It is also using in the fashion and graphic designing.
Different fields require different types of the plotter and each plotters design specific fields.

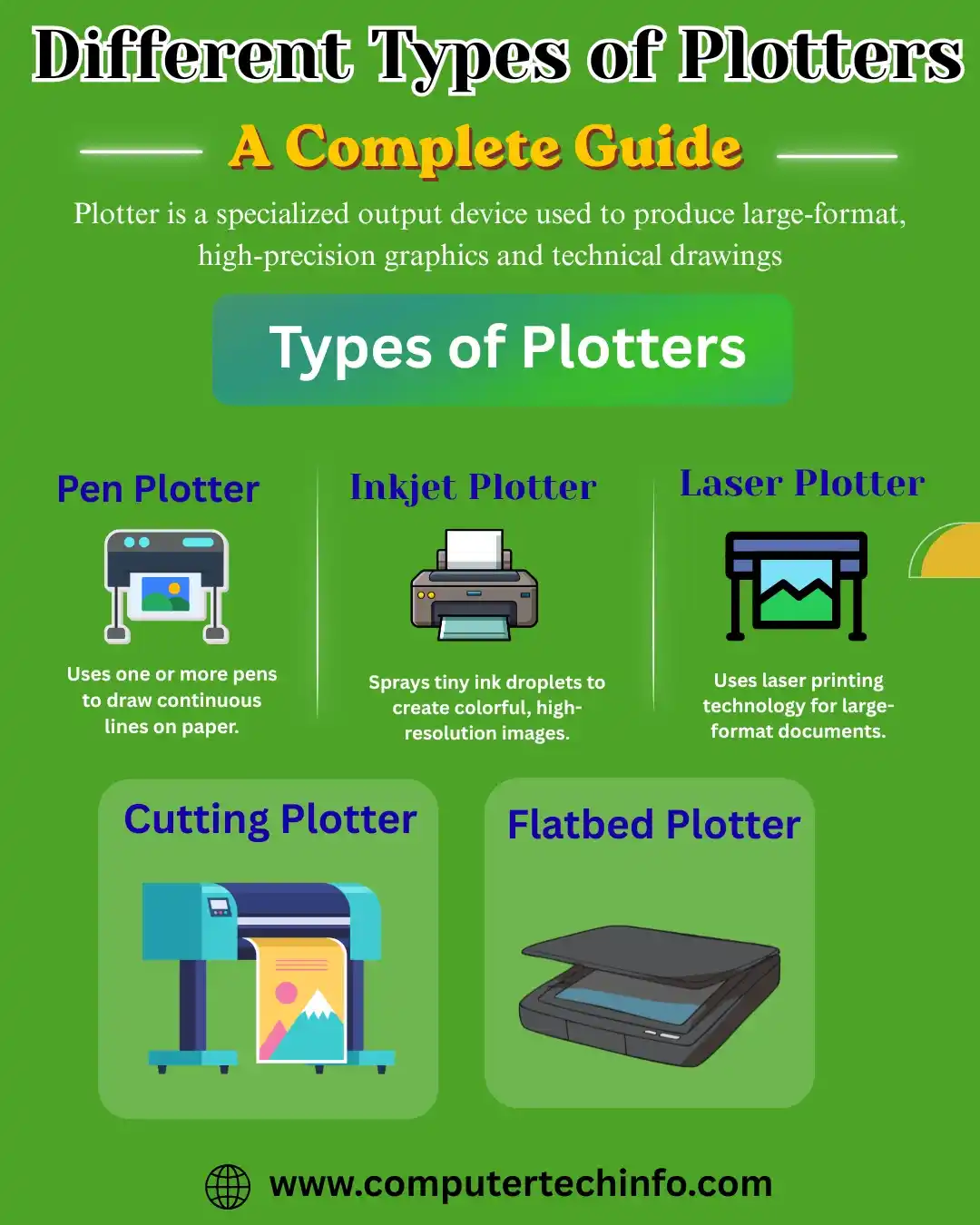

Types of Plotters
Here we are discuss about the 8 types of Plotters
Pen Plotter
Let we talk about the Pen Plotters; these plotters have an ink pen attached to draw the image. You know Plotters draw point-to-point lines directly from vector graphics files. Pen plotter was the first computer output device that must be print graphics as well as fit full-size engineering and architectural drawings.
Also Read: What is Digital Camcorder? Types of Camcorder with Functions
Pen Plotter is type of a plotter that is going to use draw the image with the help of the ink pen; which attached that plotter
Drum Plotters
So a drum plotter is a type of the plotter works with pen which moves-up and moves-down in the one axis. The shape of the drum plotter is in rectangular. But the main component in the drum plotter is cylindrical shape. This wrapped the paper in the out layer of the cylindrical drum and makes the blueprints and graphics on that page.
This is used to make a large blueprint of the building and areas and this plotter comes in the very large size of the plotter.
Flatbed Plotters
Flatbed plotter is traditional types of the plotter in upgraded version in modern timeline. This plotter size is moderate not very small and not very large. And this is one of the types of the plotter which are available easily. It can print and make the design usually created using CAD (Computer-Aided Design) software.
And there vacuum system prints the graphics on the paper by moving the pen present in the vacuum system by left to right move. They make only simple graphics.
And if the paper not set properly image will print wrong on the paper. So this plotter is made for the general use only.
Also Read: What is Trackball and Their Function and Use?
Inkjet Plotter
We discuss about in this point, the advertising companies and printing press use inkjet plotters where images create and develop with the help of ink droplets. They are sprayed on the paper to derive clean and proper output.
Let we talk about, these inkjet plotters are using in printing big images and documents like billboards, hoardings, large designs, massive banners, etc.
These inkjet plotters are available in both thermal and piezoelectric models.
The thermal inkjet plotters used heat to spray ink droplets on the paper to produce super fine outputs, whereas piezoelectric plotters used charged crystals to apply ink on paper.
In various types of Plotters, the inkjet plotter is going to consider the best in producing excellent quality design and outputs.
Electrostatic Plotter
Let are discuss about Electrostatic Plotter produces a raster image by charging the paper with a high voltage. This voltage attracts toner which is then melting into the paper with heat. This type of plotter is very fast; but the quality is normally thought about to be poor when it compares to pen plotters.
Cutting plotters
A cutting plotter is very useful tool to produce very high quality window graphics and vinyl designs. And it’s different from other types of the plotter size is smaller as compare to other. They are getting to connect with the computer system to help the used to operate the cutting plotter. This cutting plotter work very good and the accuracy rate almost 100% in printing.
Also Read: What is Computer Monitor? Types, Parts, Functions, Use, & Features
So that the cutting plotter works capacity is very high. They can design any graphics to be cutting onto vinyl and similar media. And to operate this plotter is very easy so this is a best tool for the graphics.
Thermal Plotter
This Thermal Plotter is a well-known plotter that used in all sectors where high-quality designs and products are required.
To produce output, it takes the help of an electronic pin which developed by heat that assists in building images and design as output.
Large Format Plotter
Let we talk about; Big Format Plotters are designed to print oversized documents that cannot be handled by daily printers.
Features
- Wide paper support
- High-resolution printing
- Large ink capacity
Advantages
- Excellent image quality
- Fast printing
- Supports multiple media sizes
Final Remarks
Today we are discuss about in this articles, Plotters remain important output devices for industries that need exact, large format printing. Between Drum Plotters and Flatbed Plotters to Inkjet, Electrostatic, Cutting, and Large Format Plotters, each type serves specific professional needs.
As we know about this, we are choosing the right plotter based on your application, budget, and desired print quality. Whether you’re creating architectural blueprints, engineering drawings, advertising banners or vinyl graphics, plotters deliver unmatched exact and reliability.
Also Read: What is Mouse? Types, Parts, Functions, Uses, & Features!
As we know technology advances, present plotters stay to offer faster performance, higher resolution, and greater versatility, build them an indispensable tool in design, engineering, manufacturing, and creative industries.
